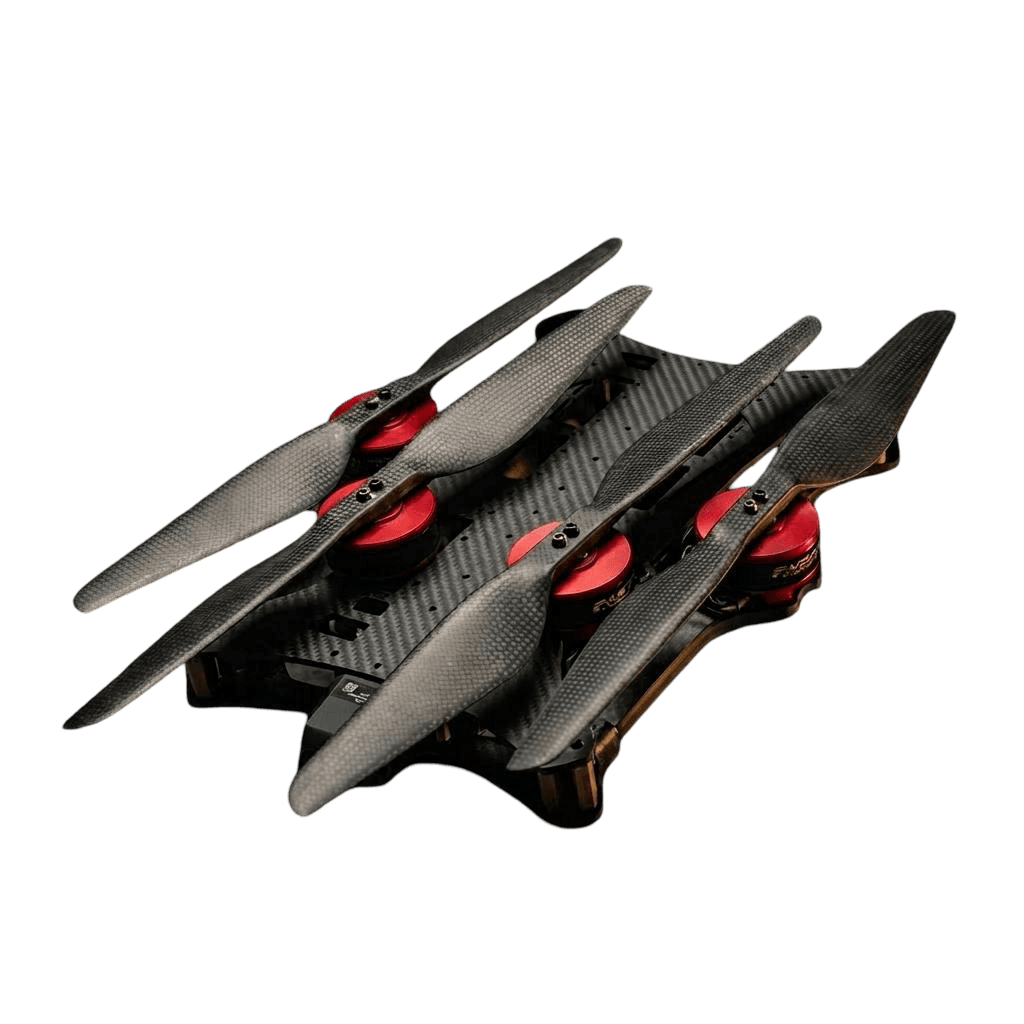

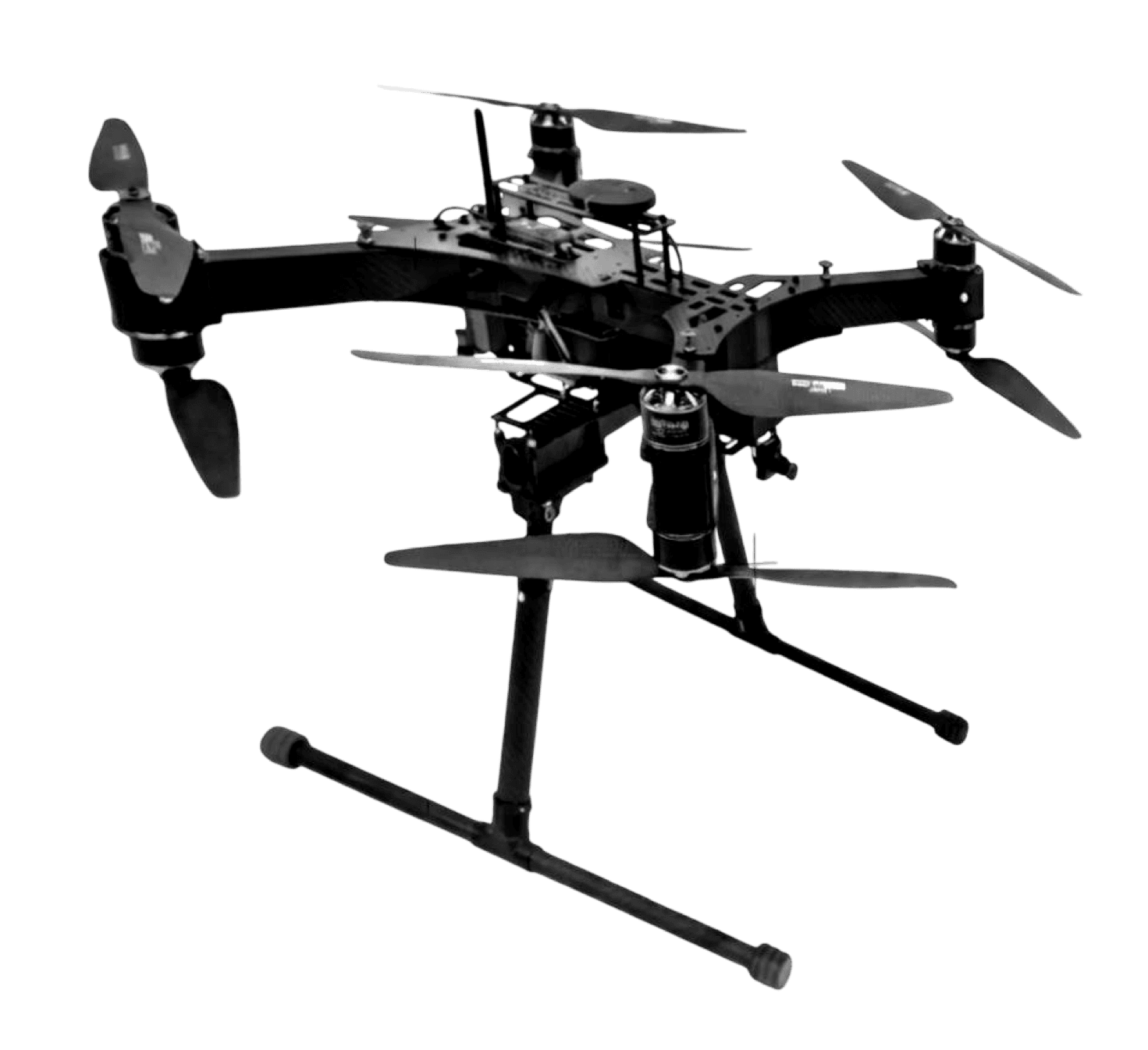

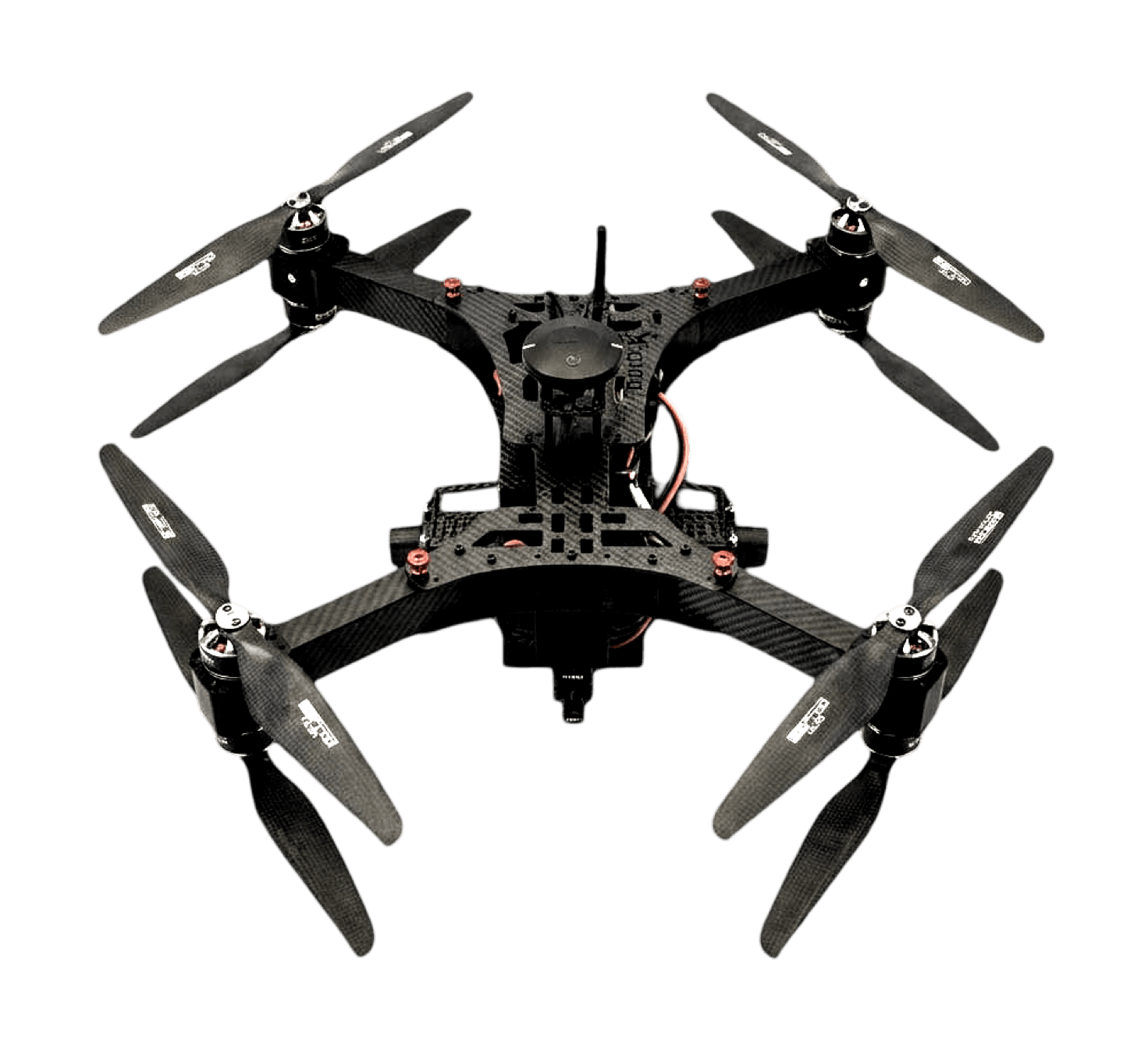

xFold™ Spy

Unbox and fly in under 2 minutes. Compact ISR platform for small sensors.

The xFold™ Spy features power and portability, designed for small cameras and sensors. Configurable as Quad, Hexa, x8 or x12 for law enforcement, industrial, commercial, government, and military applications.

Request Information

Integrated Camera System

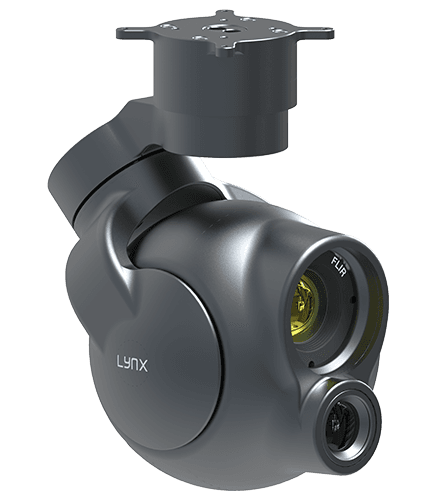

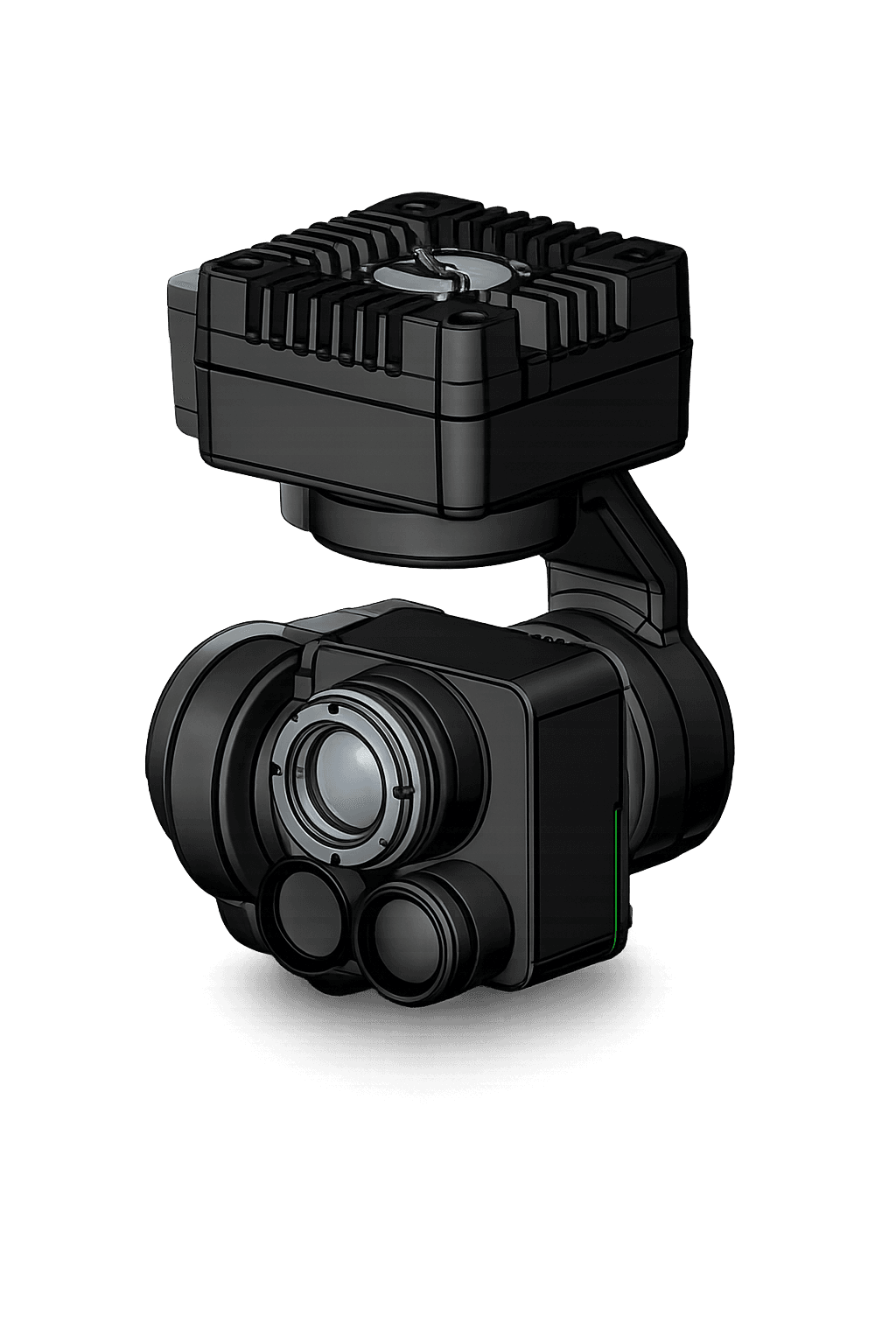

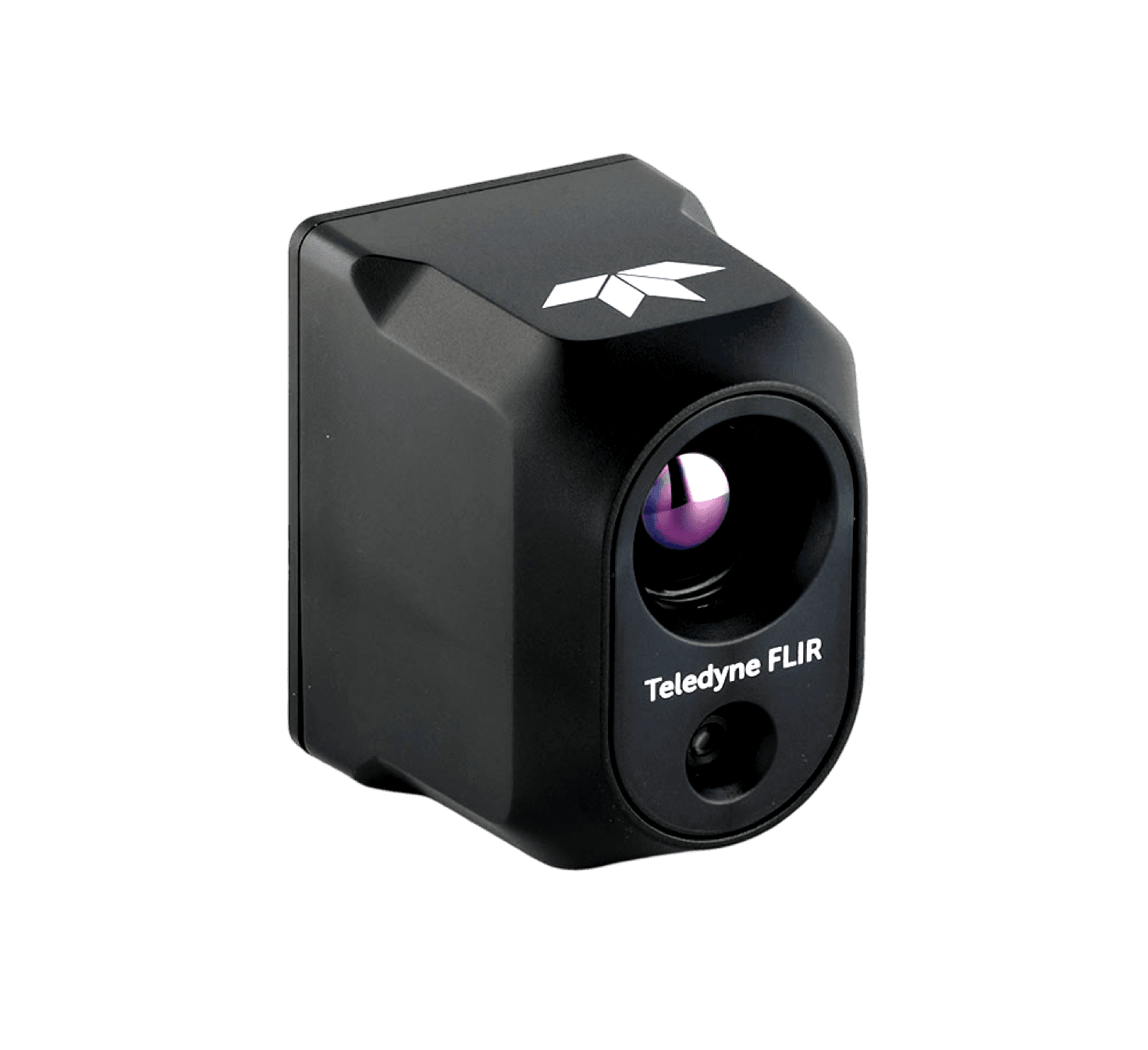

	Gremsy Lynx	FLIR Hadron 640Base Spec	Uni-Co Tech 3-Axis
General
Weight	320–365 g	56 g	188 g
Dimensions	80 × 96 × 60 mm	35 × 45 × 49 mm	50 × 81 × 57 mm
Power	15–18 W	1.8 W	<5 W
IP Rating	IP54	IP54	IP54
Visible Camera
Sensor	1/2.3" CMOS, 12.3 MP	64 MP	1/1.8" CMOS, 20 MP (×2)
HFOV	60.4°	67°	64° (W) / 16° (T)
Optical Zoom	—	—	4.6x
Digital Zoom	10x	—	9.2x
Max Hybrid Zoom	—	—	40x
Video	4K @ 30fps	Full res @ 60fps	2560×1440 @ 30fps

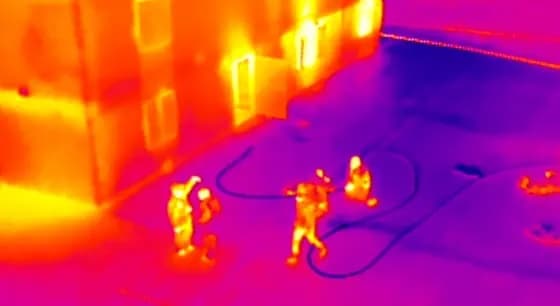

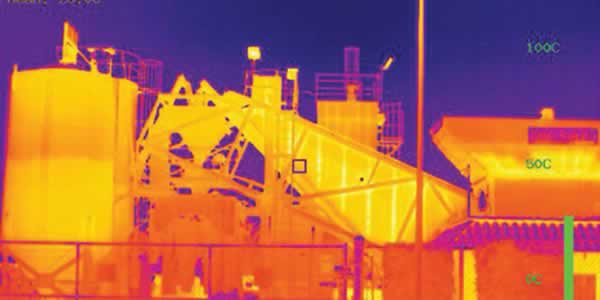

Infrared Thermal
Resolution	640 × 512	640 × 512	640 × 480
Frame Rate	25–30 Hz	60 Hz	30 fps
NETD	≤50 mK	≤50 mK	—
Spectral Band	8–14 μm	8–14 μm	8–14 μm
HFOV	32°	32°	32°
Radiometry	Yes (up to 500°C)	Yes (±5°C)	—
Gimbal
Gimbal Type	3-axis (included)	None (OEM)	3-axis (included)
Pitch Range	-130° to +40°	—	-30° to +90°
Yaw Range	±165°	—	±165°
Interface
Video Output	HDMI / IP	USB 3.0 / MIPI	HDMI 4K30 / Ethernet
Control	MAVLink	MIPI / I²C	UART / MAVLink
AI / Tracking	Yes	Prism AI ready	Yes
Image Fusion	—	—	Yes
Notes
	Complete turnkey ISR payload with integrated gimbal. Plug-and-play for ArduPilot/PX4.	Ultra-compact OEM module (56g). Requires separate gimbal and compute platform. Best SWaP.	Lightest complete gimbal (188g) with true optical zoom and thermal/EO fusion.

Included Controller

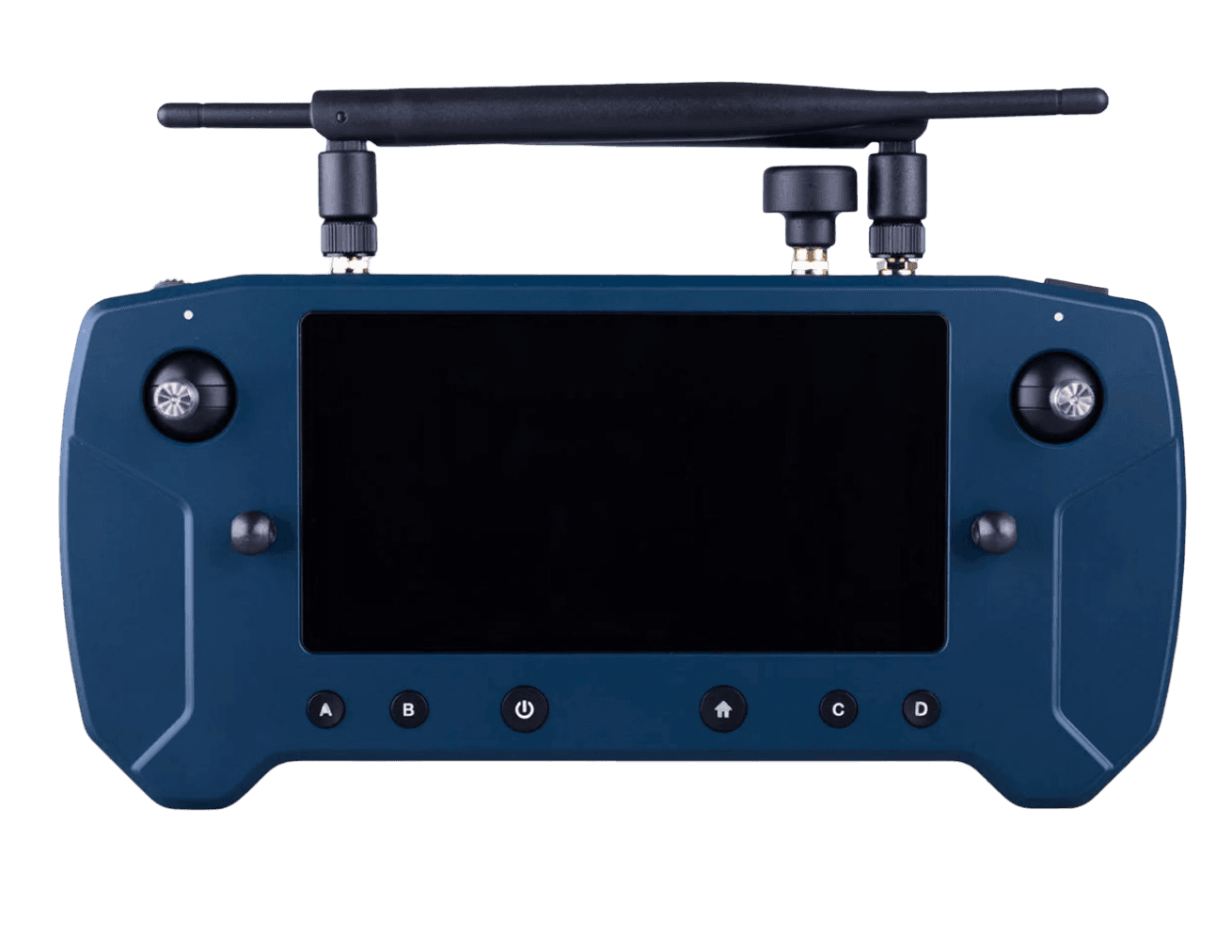

Herelink Blue V1.1 Controller

MPN: HLBC-1001

Designed and manufactured in collaboration between NW Blue and CubePilot.

A HD Video Transmission System, using PineSync technology based on S1 processor. It is an easy-to-use device for sending HDMI video and audio signals, at an affordable pricing. Signal transmission range up to 20KM with minimum latency 110ms. Two HDMI inputs. Supports 720p 30fps, 1080p 30fps / 60fps video format.

Eight-core high-performance processor S1 built-in in the air unit and controller, ensures stronger and faster data computing capabilities. Built-in powerful video image analysis GPU, 4-core Mali-T860. Herelink can update OTA via WiFi connection in the application, and supports installation of an OEM image for custom configurations.
